1999-2005 1.0 1.3 1.4 .1.5 Toyota YARIS Auto Parts Power Steering Rack Assembly LHD 44250-0D010 44250-52010

	Auto Parts Steering Rack Assembly
	Car Make	For Tyota Yaris 1.0 1.3 1.4 1.5 1999-2005
	OE	44250-0D010 44250-52010
	Drive Side	LHD (Left-hand drive)
	Operating Mode	Hydraulic
	Material	Aluminum & rubber
	Color	Sliver & Black
	MOQ	20 PCS
	Quality	100% Test
	Delivery time	1-15 days after receive payment
	Packing standard	1. Neutral packing Inner Neutral Bubble bag + Outer Cartons 2. Customized packaging as customers​ Requirements
	Advantages	1 .OEM standard quality 2. Factory wholesale price 3. Support customization 4.Strong Packing And supports customization 5.Fast and reliable logistics transportation, such as DHL,UPS,Fedex,TNT, Middle East special line, Japan special line, Thailand special line, etc. 6.Professional team and quick response.
	Contact	Wechat: Cziwan97 Whatsapp : +86-15215082574 Emai :Winnie@benmagroup.com

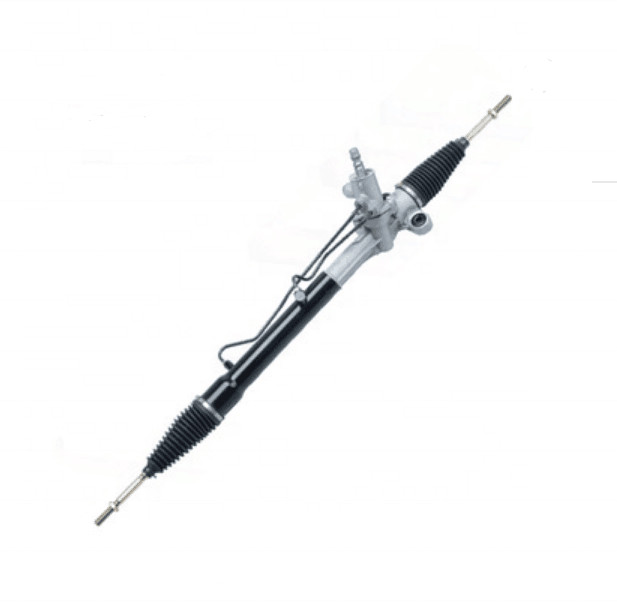

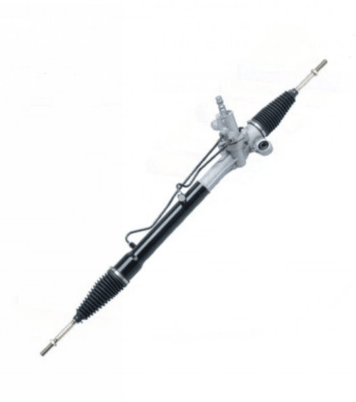

Product Image

More OEM No. for This Steering rack

Reference No.

Applicable models

Steering rack structure and working principle

Steering gear is mainly composed of pinion, rack, adjusting screw, shell and rack guide block, etc., steering gear pinion in the lower end of the steering spindle, meshing with the steering rack. When rotating the steering wheel, the pinion in the steering gear will rotate, driving the rack in the steering gear to move in the direction that the steering wheel rotates. The action of the steering gear rack, through the steering gear rack end and the steering rod end, is transferred to the steering knuckle arm, so that the wheel rotates

Common Fault determinatio for steering rack

1. Fault determination of heavy steering

(1), first of all, check whether there is lack of oil, whether the filter element is damaged, whether the pipeline is blocked

(2) when the left and right steering feel is different, should have nothing to do with the pump, first check the steering connecting rod mechanism and steering machine.

(3), the steering process feels uneven power, when heavy and light, first check the steering machine.

(4) Test the output pressure of the steering pump with the help of the pressure detection device.In addition: cold car state at low speed direction is heavy or no rotation, step a few throttle or operation for 2/3 minutes can be eliminated, this is due to the oil viscosity at low temperature is large, the centrifugal force at low speed is small, the rotor blade is not thrown out caused by, is a normal phenomenon.

2. Fault determination of oil leakage

(1) There are old oil stains and no signs of development, which is a normal phenomenon.

(2) It is normal to touch the part with oil without obvious humidity.

(3) Oil leakage at the joint of pump and tubing is usually caused by damage of the sealing ring (pad) of connection loose cargo, tightening or replacing the sealing ring (pad).

(4) If the steering pump leaks oil in other locations and there are signs of development, the steering pump needs to be replaced.

3. Fault determination of abnormal sound of steering system

(1) The sound made when the steering wheel is killed is the sound of the steering pump safety valve opening, which is a normal phenomenon.(Note: Don't beat the steering wheel to one side for more than 10 seconds.)

(2) Air leakage in the pipeline of the steering system (there are bubbles in the oil can at this time) and lack of oil will also cause abnormal sound of the steering pump.

(3) in winter, there is abnormal sound in a short time after the cold car starts, and it disappears after the hot car, which is a normal phenomenon.

(4) abnormal sound does not change with the rotation of the steering wheel, which is generally not a problem with the steering pump.

(5) When the steering is abnormal in one direction or a certain position, it is necessary to focus on checking the steering connecting rod mechanism and steering machine.

How to maintain steering rack:

1. When driving on the bumpy road surface, slow down and reduce the load borne by the steering rack;
2, often check the dust jacket on both sides of the steering rack and the dust jacket connected with the upper part of the steering rack and the universal cross shaft. The breakage of dust jacket is the main factor leading to the early wear and damage of steering machine. After the dust jacket is damaged, water and dust and sand will enter the inside of the steering rack through the broken place, destroy the grease oil film of the gear rack, resulting in rust and abnormal wear inside the steering rack. If the internal water and sand are not dealt with immediately, it will cause the scrap of the steering rack in a short time. So check the status of the dust jacket at least once a month, if the dust jacket is found to be damaged, it must be replaced immediately, and make a comprehensive inspection and maintenance of the steering rack before replacement;
3. Before making the four-wheel positioning adjustment and after changing the steering rod, special attention should be paid to the phenomenon of distortion and improper assembly of the dust jacket, otherwise it will cause damage to the dust jacket.
4, due to the use of grease will gradually become dirty, deterioration, so that the lubrication capacity decreased; At the same time, the material under the wear will gradually increase, the abrasive wear phenomenon will be more and more serious, so that the steering rack wear aggravated. Every 100,000km or so should be done a comprehensive maintenance of the steering rack, comprehensive cleaning, re-filling grease;
5. The service conditions of the steering rack are poor and the load is large. The grease must be used, and the ordinary grease can not meet the service requirements.
6, steering rack clearance in use will gradually, if the left and right air travel of the steering wheel is more than 15 degrees, the steering rack must be checked, such as abnormal wear and tear of the rack and pinion, must replace the steering rack assembly; If there is no abnormal wear, but the gap is too large, can be adjusted. In the adjustment to the service station by the trained personnel, after adjustment to ensure that the steering wheel can turn left and right to the limit position, and the force is uniform, flexible rotation;
7. Do not carry out maintenance and maintenance of steering rack in roadside shops with simple equipment and low technical level at will. If the steering rack is not adjusted properly, it will cause the phenomenon of jamming, endangering driving and personal safety.

Delivery & Packing

More Recommend

Our Company

Advantages

1 OEM quality standard guarantee

2 Competitive factory price

3 Sample order is avaliable

4. Packing according to specification requirred

5 Flexible and convenient logistic service

6 Professional team with excellet after-sales sevice

7 20 years trading experience

8. Positive feedback from abroad and domestic customer

9. We will reply you for your inquiry in 24 hours.

10. after sending, we will track the products for you once every two days, until you get the products. When you got the goods,

test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer

the solve way for you.

FAQ

1. Are you factory?

Re: Yes, Our factory established in 1983 and now we have our own more than 5 factory , 10 production line and stuff more than 400 people ,Most of our factory are use automatic machine to increase the output.

2. What is your MOQ?

Re: Our MOQ depend on the product, Generally speaking the more you order the production cost will be less, But small order is also Acceptable.

3. How to make sure your quality level?

Re: All our product has been sold more than 10 years in 40 countries now we have our solid partner to selling every month , In our production line all product been tested before packing to make sure the quality level ,In case any quality problem during transpotation we will responsible for it.

4.There are so many Modesl i am not sure which one i need?

Re: Please do not worry we have expereinced sales man to guide you which product is popular and which one is hard to sell,we will give you professional guide just contact us for more details.

5. How to place order?

Re: Please send us inquiry online ,we will get back to you by email after price discussion we shall send you invoice for payment and then we will take care of the shipping to send to your port,Any question of international business we will take care it for you.

6. Can i visit your factory and samples?

Re: yes we welcome you to visit our factory anytime, Also sample we offer free sample,pls contact us for more details.
