OEM Standard Quality 2009 Volkswagen Tiguan CC Power Steering Rack Repair Parts Magotan DS Car Electric Steering Rack Assembly

Common steering rack problems

-1 .Very tight steering wheel

If it is becoming more difficult to turn your steering wheel, it’s a sign that there’s probably a problem either with your steering rack or a lack of pressure from the power steering unit. The solution could be as simple as adding more power steering fluid, but it’s best to get it checked.

-2.Leaking power steering fluid
Power steering fluid levels only decrease and result in tight steering if there is a leak. This isn’t a big problem, however the consequences for leaving it too long include causing the steering gearbox and steering rack to overheat or gears to break. It is recommended to get this fixed when it is a simple (and cheap) task. Click here for more information about the causes of these leaks

-3.Grinding noise when steering
A grinding noise from your steering gearbox comes from metal-on-metal contact, suggesting a lack of lubrication. You’ll be able to hear it clearly when you turn either left or right. Ask your mechanic to take a look at the problem, as your steering gearbox could need replacing.

-4.Burning oil smell
Power steering fluid smells like burning oil, so if you smell it when driving it’s a sign that the steering gearbox is too hot. It’s best to stop your car as soon as possible and get the problem looked at it. Driving with an overheated steering gearbox can result in fire

Product Description

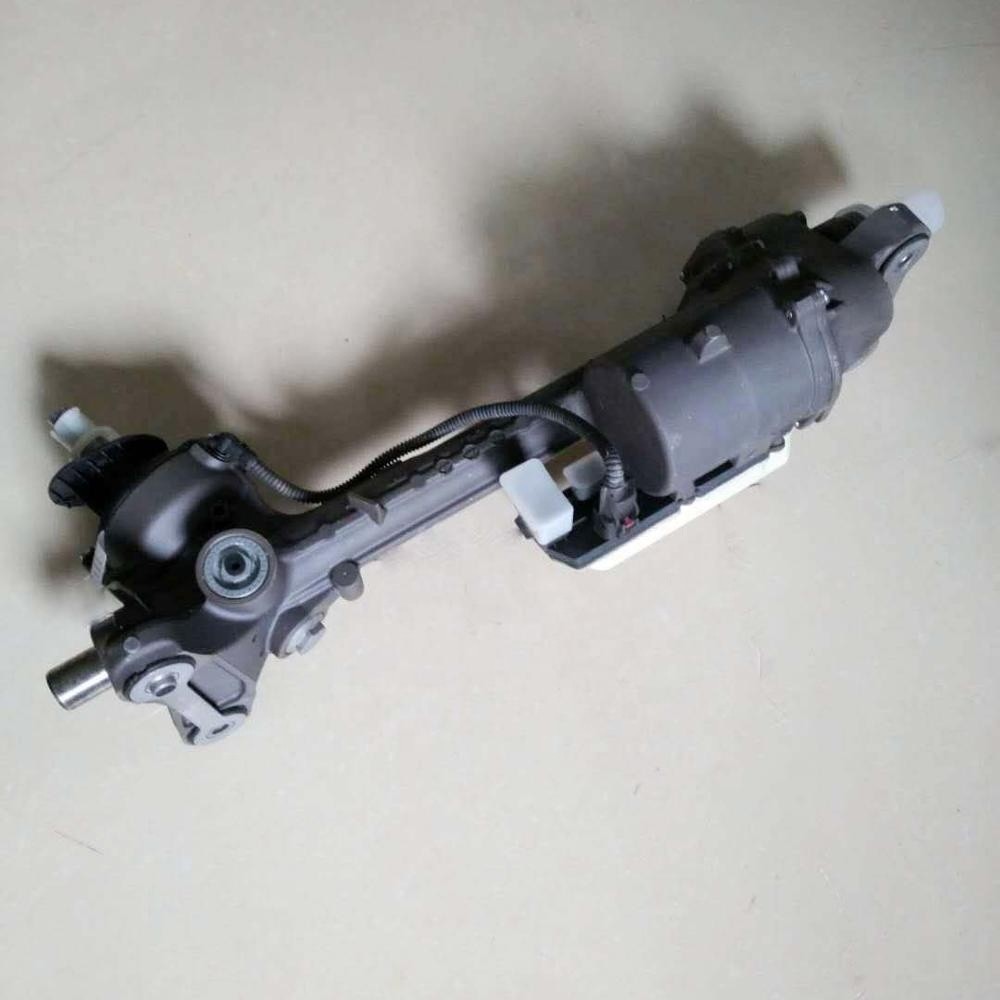

2009 Volkswagen Tiguan CC Power steering rack

Magotan DS Car Electric Steering gear Assembly

Power Steering Rack Repair Parts

Auto Power steering rack for 2009 Volkswagen Tiguan

Common Fault Determination for Steering rack

1. Fault determination of heavy steering

(1), first of all, check whether there is lack of oil, whether the filter element is damaged, whether the pipeline is blocked

(2) when the left and right steering feel is different, should have nothing to do with the pump, first check the steering connecting rod mechanism and steering machine.

(3), the steering process feels uneven power, when heavy and light, first check the steering machine.

(4) Test the output pressure of the steering pump with the help of the pressure detection device.In addition: cold car state at low speed direction is heavy or no rotation, step a few throttle or operation for 2/3 minutes can be eliminated, this is due to the oil viscosity at low temperature is large, the centrifugal force at low speed is small, the rotor blade is not thrown out caused by, is a normal phenomenon.

2. Fault determination of oil leakage

(1) There are old oil stains and no signs of development, which is a normal phenomenon.

(2) It is normal to touch the part with oil without obvious humidity.

(3) Oil leakage at the joint of pump and tubing is usually caused by damage of the sealing ring (pad) of connection loose cargo, tightening or replacing the sealing ring (pad).

(4) If the steering pump leaks oil in other locations and there are signs of development, the steering pump needs to be replaced.

3. Fault determination of abnormal sound of steering system

(1) The sound made when the steering wheel is killed is the sound of the steering pump safety valve opening, which is a normal phenomenon.(Note: Don't beat the steering wheel to one side for more than 10 seconds.)

(2) Air leakage in the pipeline of the steering system (there are bubbles in the oil can at this time) and lack of oil will also cause abnormal sound of the steering pump.

(3) in winter, there is abnormal sound in a short time after the cold car starts, and it disappears after the hot car, which is a normal phenomenon.

(4) abnormal sound does not change with the rotation of the steering wheel, which is generally not a problem with the steering pump.

(5) When the steering is abnormal in one direction or a certain position, it is necessary to focus on checking the steering connecting rod mechanism and steering machine.

Delivery &Parking

Our Advantages

FAQ

Q1. How many years have your company deal in autoparts?

A: We have been founded for 20 years now

Q2. What is your company major products?

A: Our main products are Steering rack, steering pump, Brake Pad, Oil Fiter. Fuel Filter, Air Fiter, Shock Absorber, Control Arm, brake disc, brake master cylinder ,clutch parts, engine parts ,body parts, modified parts , truck parts etc.

Q3. Are you a factory or trading company?

A: We are Manufacturing and Trading company, we have several factories

04. What is the MQQ?

A: Normally we can supply any quantity if we have stock.

05. What is the delivery date?

A: It takes 1-7 days if there is stock, but takes about 7-35 days if there is no stock.

Contact Information

We have all the steering racks , welcome to contact me to know more
