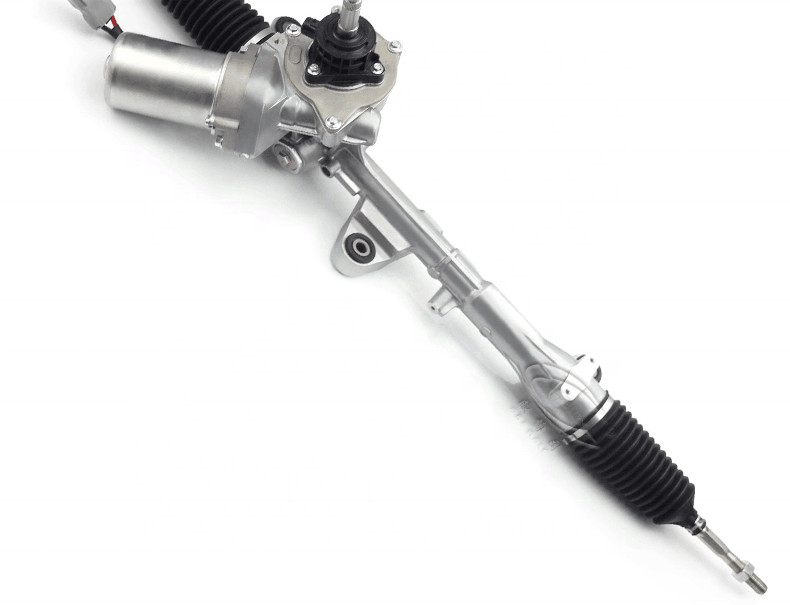

Honda City Car EPS Steering Rack and Opinion LHD 53601-TG5-A01 53601-TG5-H05 For Honda City (GM2/3/6)1.8L/Fit 1.3L 2009-2014

Product Description

Honda Automotive Electronic steering rack

Steering Rack and Opinion LHD

About steering rack you should know

Notes on the use of steering rack

When driving on potholed and uneven road surface, slow down and slow down to reduce the load of steering machine.

Frequently check the protective cover on both sides of steering machine and the protective cover connected with the cross shaft of steering machine.

After making four-wheel positioning and adjusting the front bundle and changing the steering tie rod, special attention should be paid to the phenomenon of distortion and improper assembly of the protective sleeve, otherwise it will cause damage to the sheath.

The service condition of the steering rack is bad and the load is large, so special lubricating oil must be used, and ordinary lubricating oil can not meet the service requirements.

Do not at will in the equipment simple, low technical level of roadside shop for the maintenance of the maintenance of the rack.If the steering rack is not adjusted properly, it will cause the phenomenon of jamming, which will endanger driving and personal safety

1. Fault determination of heavy steering

(1), first of all, check whether there is lack of oil, whether the filter element is damaged, whether the pipeline is blocked

(2) when the left and right steering feel is different, should have nothing to do with the pump, first check the steering connecting rod mechanism and steering machine.

(3), the steering process feels uneven power, when heavy and light, first check the steering machine.

(4) Test the output pressure of the steering pump with the help of the pressure detection device.In addition: cold car state at low speed direction is heavy or no rotation, step a few throttle or operation for 2/3 minutes can be eliminated, this is due to the oil viscosity at low temperature is large, the centrifugal force at low speed is small, the rotor blade is not thrown out caused by, is a normal phenomenon.

2. Fault determination of oil leakage

(1) There are old oil stains and no signs of development, which is a normal phenomenon.

(2) It is normal to touch the part with oil without obvious humidity.

(3) Oil leakage at the joint of pump and tubing is usually caused by damage of the sealing ring (pad) of connection loose cargo, tightening or replacing the sealing ring (pad).

(4) If the steering pump leaks oil in other locations and there are signs of development, the steering pump needs to be replaced.

3. Fault determination of abnormal sound of steering system

(1) The sound made when the steering wheel is killed is the sound of the steering pump safety valve opening, which is a normal phenomenon.(Note: Don't beat the steering wheel to one side for more than 10 seconds.)

(2) Air leakage in the pipeline of the steering system (there are bubbles in the oil can at this time) and lack of oil will also cause abnormal sound of the steering pump.

(3) in winter, there is abnormal sound in a short time after the cold car starts, and it disappears after the hot car, which is a normal phenomenon.

(4) abnormal sound does not change with the rotation of the steering wheel, which is generally not a problem with the steering pump.

(5) When the steering is abnormal in one direction or a certain position, it is necessary to focus on checking the steering connecting rod mechanism and steering machine.
