2005-2015 2.5 2.7 3.0 Toyota Hilux VII Pickup Car Power Steering
Rack Assy LHD 44200-0K040 44200-0K170 For 4 Runner 12-15
| Product name | Hilux steering rack and pinion assy |
| Car Make | Toyota Hilux VII Pickup 2.5 2.7 3.0 05-15 4 Runner 12-15 |
| OEM No. | 44200-0K040 44200-0K170 |
| Drive Side | LHD |
| Operating Mode | Hydraulic |
| Delivery time | 3-15 days |
| Packing | Neutral Bubble bag + Cartons |
Product Description

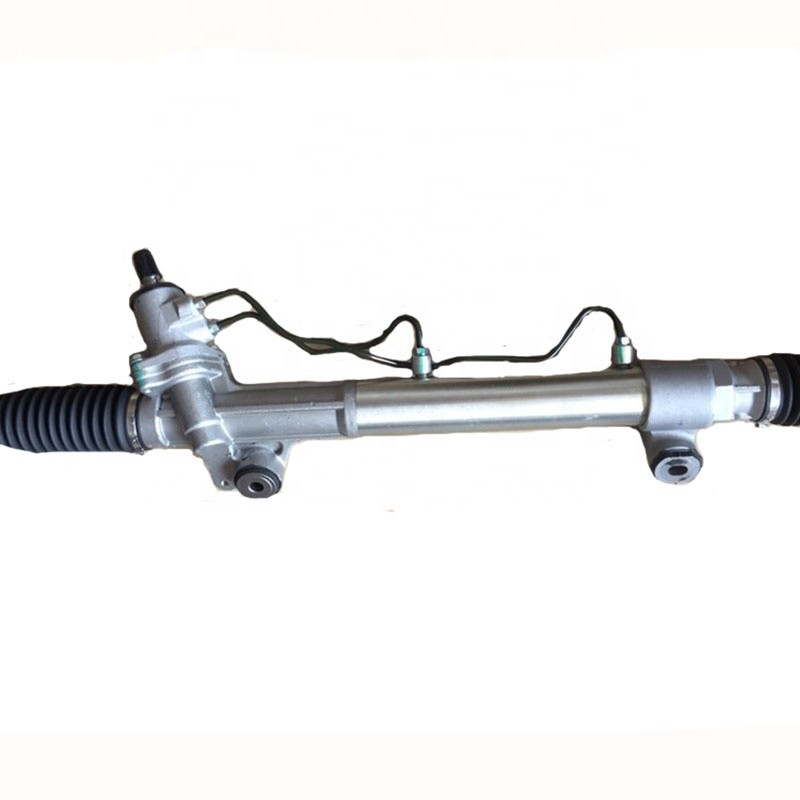

2005 -2015 Toyota Hilux Power Steering Rack
2.5 2.7 3.0 Hilux Car Steering Rack gear
2012-2015 Toyota 4 Runner Car Steering Rack assy
Toyota Car LHD Power Steering Rack
1. How does steering rack work
Rack and pinion steering uses a gear-set to convert the circular
motion of the steering wheel into the linear motion required to
turn the wheels. It also provides a gear reduction, so turning the
wheels is easier.
It works by enclosing the rack and pinion gear-set in a metal tube,
with each end of the rack sticking out from the tube and connected
to an axial rod. The pinion gear is attached to the steering shaft
so that when the steering wheel is turned, the gear spins, moving
the rack. The axial rod at each end of the rack connects to the tie
rod end, which is attached to the spindle.
Most cars need three to four complete turns of the steering wheel
to go from lock to lock (from far right to far left). The steering
ratio shows you how far to turn the steering wheel for the wheels
to turn a certain amount. A higher ratio means you need to turn the
steering wheel more to turn the wheels a certain amount and lower
ratios give the steering a quicker response.
Some cars use variable ratio steering. This rack and pinion
steering system uses a different number of teeth per cm (tooth
pitch) in the centre than at the ends. The result is the steering
is more sensitive when it is turned towards lock than when it is
close to its central position, making the car more maneuverable.
There are two main types of rack and pinion steering systems:
End take off – the tie rods are attached to the end of the steering
rack via the inner axial rods.
Centre take off – bolts attach the tie rods to the centre of the
steering rack.
2.How does steering rack work with power steering
When a rack and pinion system is connected to a power steering
system, the design changes slightly. A cylinder with a piston in
the middle is placed in the rack. There is fluid on both sides of
the piston. When pressure is placed on the fluid on one side of the
piston, it forces the piston to move, which turns the rack and
assists with steering.
